QuBC and COBO IBC

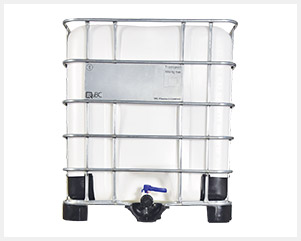

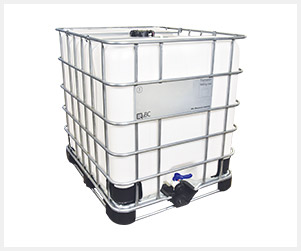

Most Economical but strong IBC Packaging Solution QuBC 1000 and COBO IBC


TPL Plastech Limited has established itself as a leading manufacturer of Industrial Packaging with multi locational units at strategic places in India. It has gained a reputation of being a reliable supplier both in terms of quality and services.

Expanding its portfolio from the current range of medium and large size blow moulded packaging, TPL Plastech Limited is pleased to add to its range the latest product range of 'QuBC' Intermediate Bulk Container (IBC) of 1000 litre capacity and Re-bottled (COBO) IBC with a reconditioned cage and a brand new inner container. These IBCs are UN certified and available with range of pallet options.

Conforming to global standards, these IBCs have standard dimensions, are optimally designed and have the latest features of Cage Tube profiles. Designed to withstand rigors of local and international export shipments, the IBCs have remarkable performance parameters.

QuBC is backed by global collection service for efficient and sustainable collection of QuBCs, post emptying.

Features

Elegant Look
6x20 standard cage combination
D shaped 2 star profile for High stack & weld strength
Smooth Curved Surface (EHS Compliance)
Globally accepted standard Dimensions 1x1.2x1.15 Mtrs
Option of Composite steel & Wooden Pallet
High Quality discharge Valve
6" / 9" Top Lid

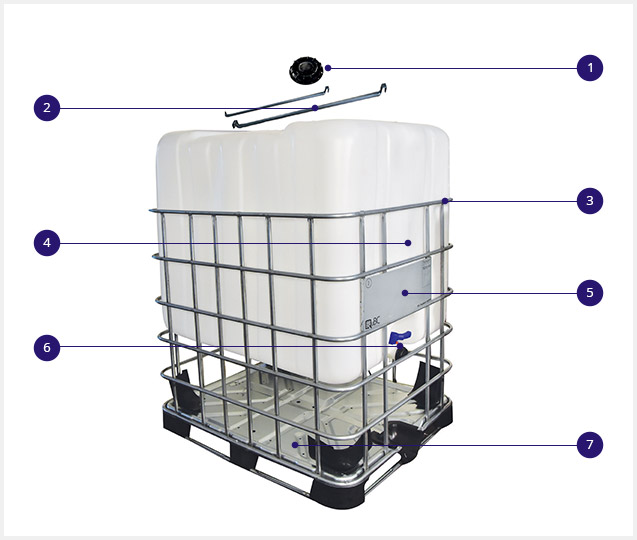

Exploded View

  • 1. Top Lid - Screaw cap with gasket filling opening Dn 150 (6") & DN 225 (9").
  • 2. Top Cross Bars - Holds the inner container in place.
  • 3. Tube Cage - Galvanized steel vertical & Horizontal bars with higher corrosion resistance. Additional unique AVBs on the top ring for exceptional dynamic stack performance.
  • 4. HM - HDPE inner container of 1000 litres, virgin UV stabilized food grade material.
  • 5. Identification Plate - Space for labelling the product & other details.
  • 6. Discharge Valve - Butterfly valves tap sealed 2"[ON 50] size. Other options available.
  • 7. Pallet - Smaetly profiled for maximum draining & inter stack ability.

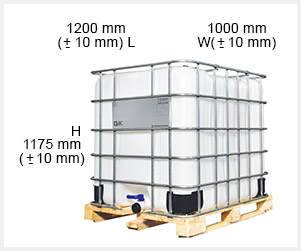

QuBC - WP (Wooden Pallet)

UN approved 31 HA1/Y/...

Labelling Plate
Regular
205 mm x 552 mm

Pallet
Wooden pallet
Strong Heat-Treatment (ISPM 15) wood pallet
Inner Container
Raw material
HD-PE (High Density Polyethyle ne)
Useful Volume
1000 L
Colour
Natural white (Optional Opaque white/Black)
Top Lid
Standard
DN 150 with 70mm bung with / with out DG
Standard Gasket
EPDM
Option Gasket
Viton
Bottom Valve
Valve type
2 inch (DN50) Integrate d Butterfly Discharge Valv e
Options in Valve
DN80 Butterfly Valve/ DN50 Ball Valve
TubeCage
Tube
Resistance welded. HDG steel tubes 6X20 combination.

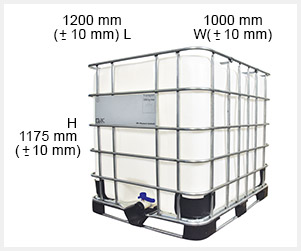

QuBC - CP (Composite steel Pallet)

UN approved 31 HA1/Y/...

Labelling Plate
Regular
205 mm x 552 mm

Pallet
Composite steel pallet
Galvanized Steel / PE Composite frame pallet , 4-way entry
Inner Container
Raw material
HD-PE (High Density Polyethylene )
Useful Volume
1000 L
Colour
Natural white (Optional Opaque white/Black)
Top Lid
Standard
DN 150 with 70 mm bung with DG
Standard Gasket
EPDM
Option Gasket
Viton
Bottom Valve
Valve type
2 inch (DN50) Integrat ed Butterfly Discharge Valve
Options in Valve
DN80 Butterfly Valve/ DN50 Ball Valve
TubeCage
Tube
Resistance welded. HDG steel tubes 6X20 combination.
